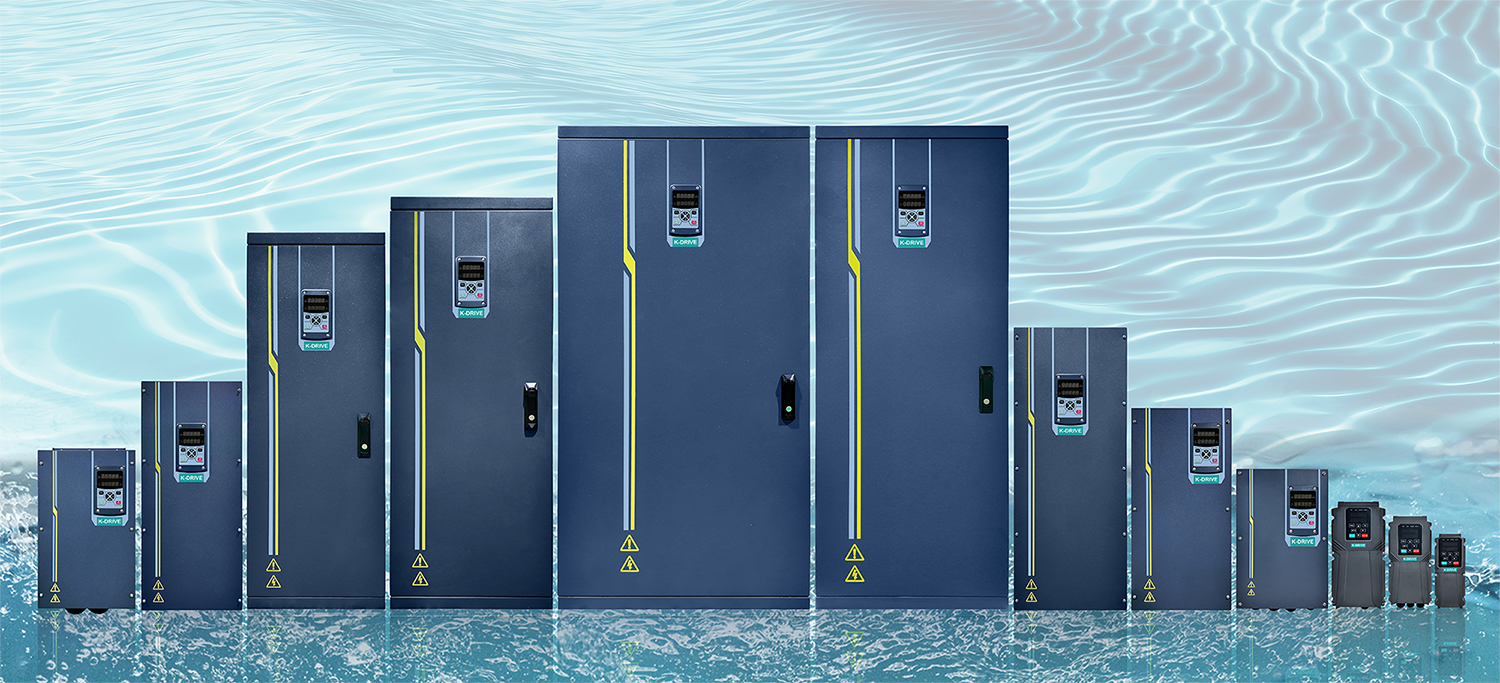

KD700/IP54 IP65 High Protection VFD

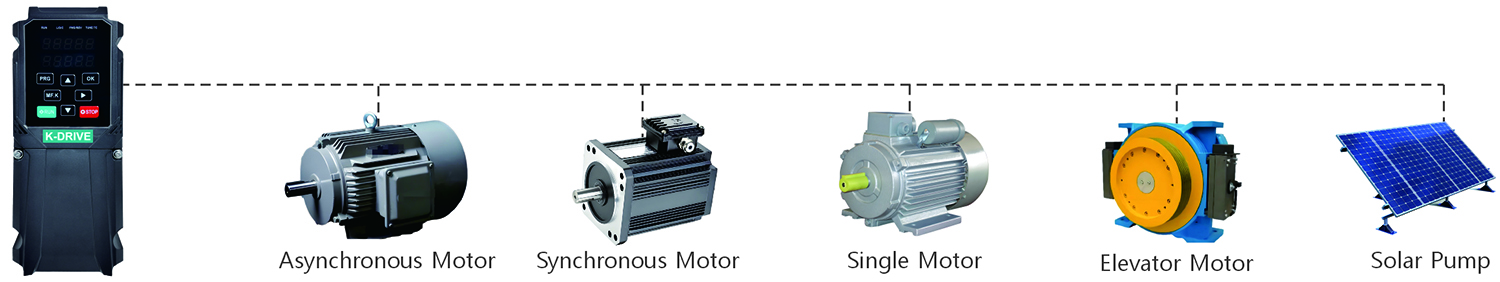

The KD700/IP65 inverter is a brand-new masterpiece launched by us based on over ten years of professional research and development experience. Its regular configuration includes a dual-display LED panel with the function of duplicating parameters, as well as an LCD liquid crystal panel that supports duplicating parameters in multiple languages. This innovative design enables rapid switching of parameters between different dedicated software, and can be widely adapted to various application scenarios such as photovoltaic water pumps, synchronous motors, asynchronous motors, elevators, and cranes. This core advantage not only greatly optimizes the operational experience of customers, but also significantly reduces their inventory pressure, eliminating the need to reserve multiple devices for different functional requirements.

In terms of hardware configuration, the KD700/IP65 is meticulously designed with 7 multi-functional terminals, 2 sets of AI input, 2 sets of relay output and AO output, and integrates STO safety function into it. Even without the additional configuration of IO expansion cards, these rich interfaces and functions can already meet 99% of the regular working condition requirements, ensuring the high applicability and convenience of the equipment.

Structurally, the KD700/IP65 modularizes the control board and power board, greatly facilitating customer maintenance and the free replacement of different accessories

In terms of communication and expansion capabilities, the KD700/IP65 demonstrates outstanding compatibility, fully supporting various mainstream communication cards on the market, such as PROFIBUS, PROFINET, CANOPEN, ETHERCAT, MODBUS TCP, etc., and is also compatible with multiple types of PG cards. It provides a high degree of flexibility for the integration of industrial automation systems.

In conclusion, the KD700/IP65 frequency converter, with its affordable price, delivers a high-end and comprehensive functional experience to users. It is undoubtedly a highly efficient, intelligent, and economical drive control solution, truly an ideal machine for customers.

Product Features

01. Powerful waterproof and dustproof performance, can be used in any harsh environment;

02. Flame-retardant ABS thermoplastic polymer material, sheet metal paint spraying process, safer and more corrosion-resistant;

03. Support PT100/PT1000 temperature analog signal input;

04. Built-in 105℃-10000H high-quality capacitor, longer life;

05. Independent air-cooling heat dissipation design is more efficient and convenient for cleaning and maintenance;

06. 0.1S output 200% curve current protection, larger torque output;

07. Equipped with PID and PLC functions to facilitate the deployment of intelligent control systems;

08. Complete phase loss, voltage, current, motor and drive protection functions;

09. Powerful motor control performance, supporting SVC speed sensorless vector control and V/F control;

10. Thousands of groups of parameter settings, powerful functions;

10. Wide voltage design -15% to +20%, suitable for more occasions;

Technical Details

Input Voltage	380V-480V three phase
Output Voltage	0~480V three phase
Output Frequency	0~1200Hz V/F
	0~600HZ FVC
Control Technology	V/F , FVC,SVC, Torque Control
Overload capability	150%@rated current 60S
	180%@rated current 10S
	250%@rated current 1S
Simple PLC support max 16-steps speed control
5 Digital inputs , support both NPN & PNP
2 Analog inputs, AI 1 support -10V~10V, AI2 support -10V~10V, 0~20mA & PT100/PT1000 temperature sensor
1 analog output support 0~20mA or 0~10V, 1 FM, 1 Relay, 1 DO
Communication	MODBUS RS485, Profitnet, Profitbus, CANopen, Ethercat, PG

您的浏览器版本太低

Product Features

Technical Details

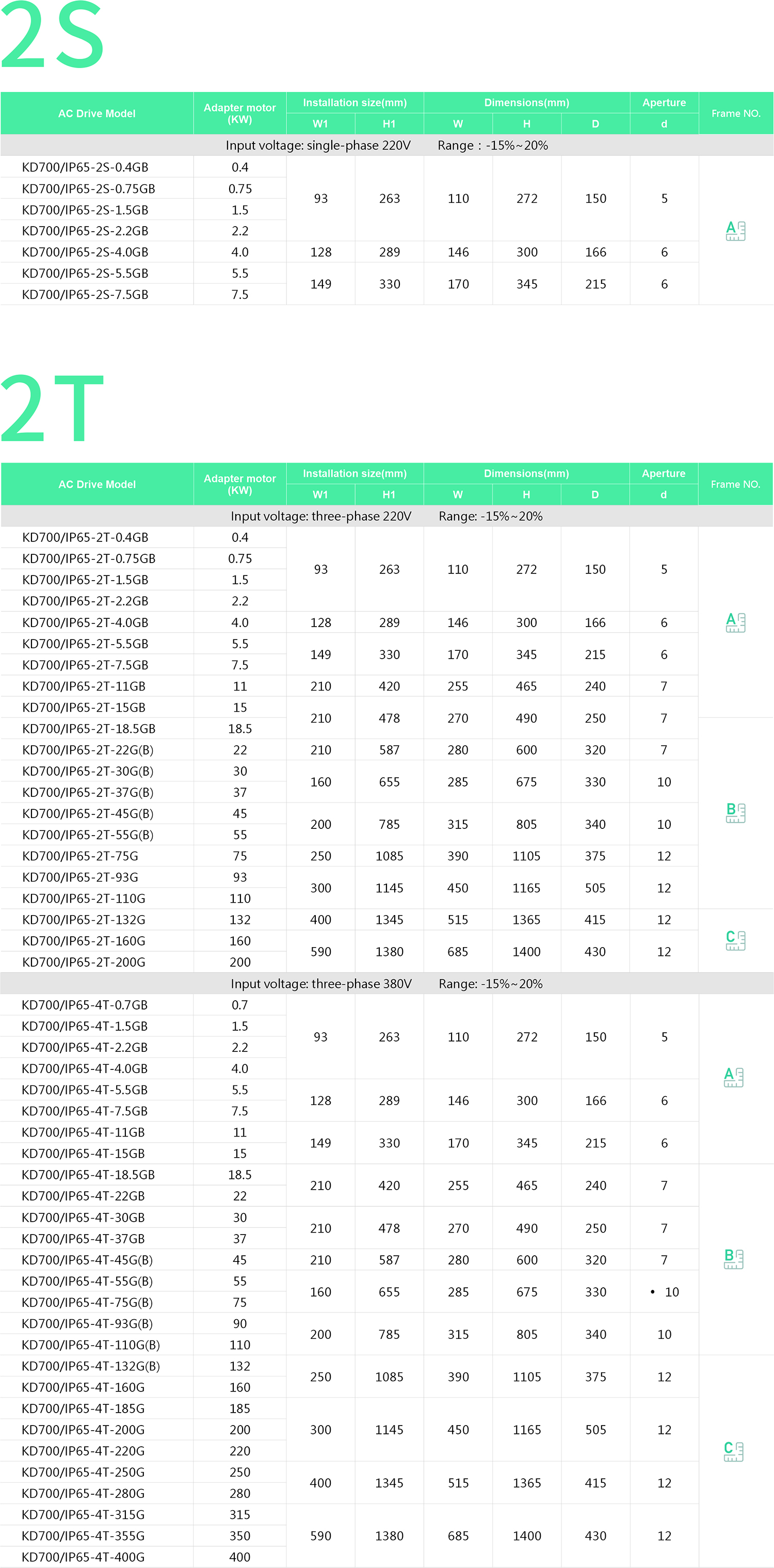

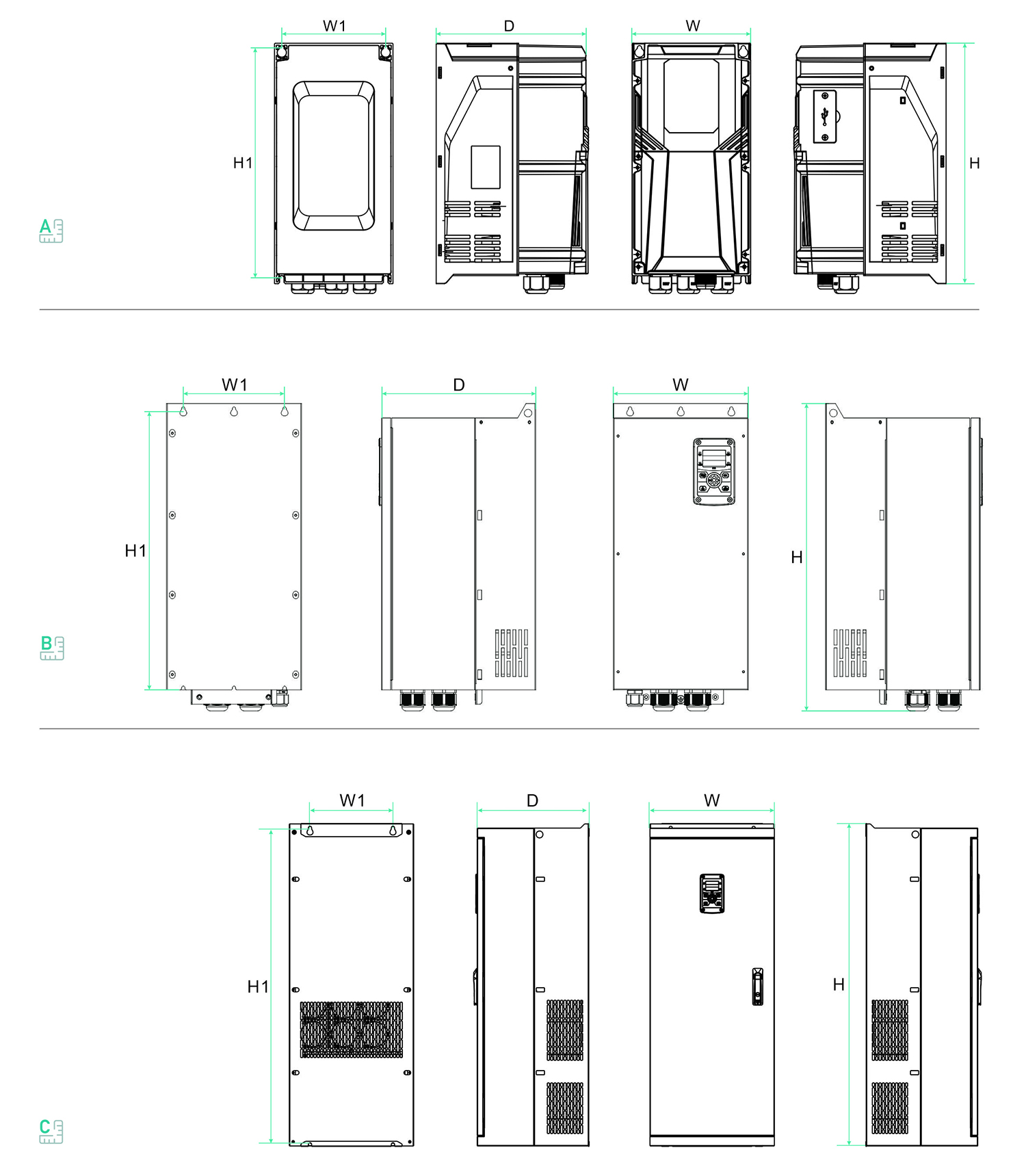

Model Dimension

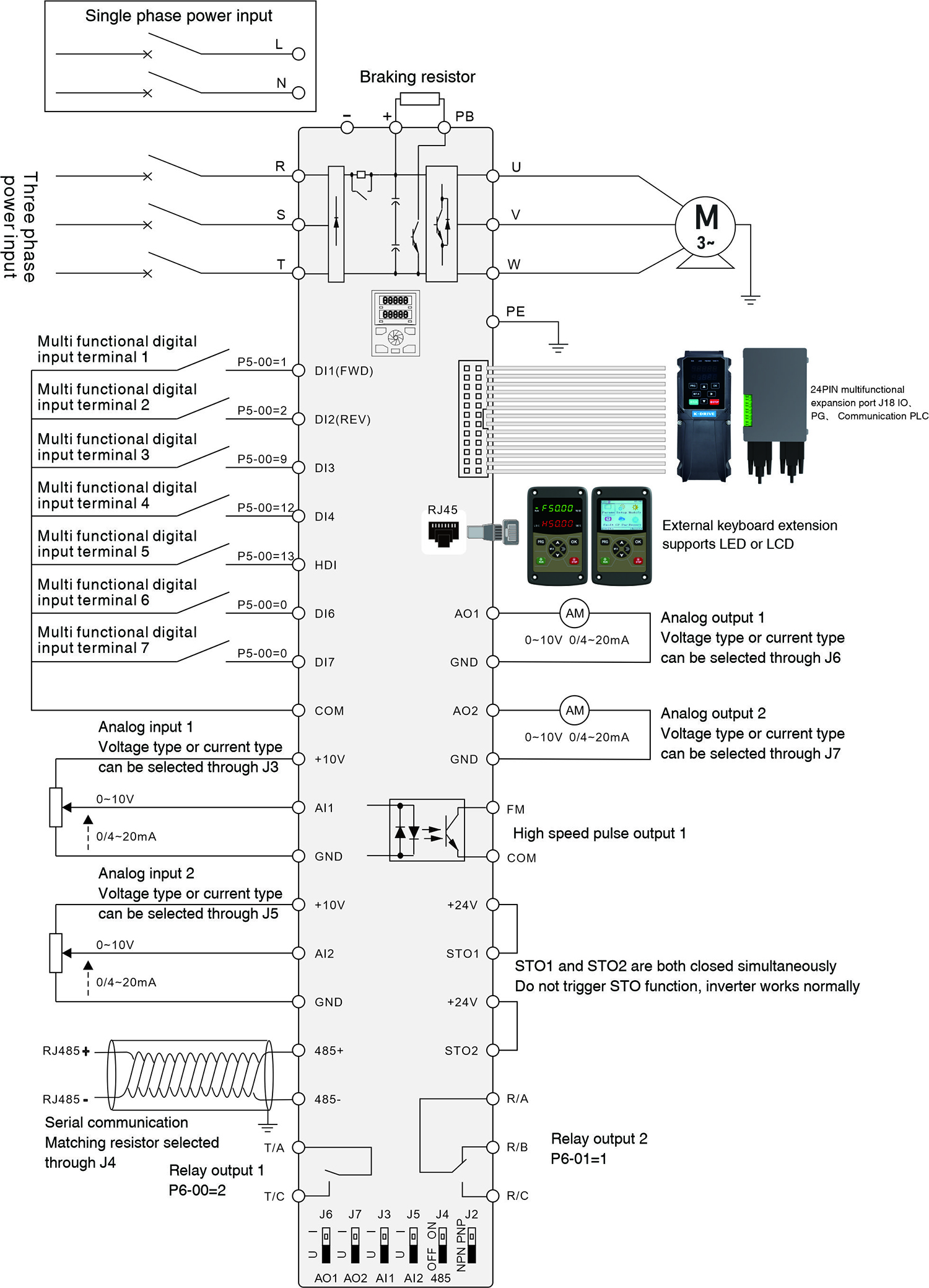

Basic wiring diagram:
